1SMC45A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Download the 1SMC45A datasheet PDF. This datasheet also covers the 1SMC5.0 variant, as both devices belong to the same surface mount transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Features

  • ! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O Mechanical Data ! Case :DO-214AB(SMC) ! Terminals : Solder plated , solderable per MIL-STD-750, method 2026 ! Polarity Indicator: Cathode Band (Note: Bi-directional devices have no polarity indicator. ) ! Marking: Date Code and Marking Code See Page 2 ! Weight: 0.21 grams (approximate) SMC/DO-.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1SMC5.0-Sunmate.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1SMC45A
Manufacturer Sunmate
File Size 714.64 KB
Description SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Datasheet download datasheet 1SMC45A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1SMC45A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR Bruckewell
1SMC45A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR EIC
1SMC45A SURFACE MOUNT SILICON UNI-DIRECTIONAL GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS Central Semiconductor
1SMC45AT3 Zener Transient Voltage Suppressors ON Semiconductor
1SMC45CA SURFACE MOUNT SILICON BI-DIRECTIONAL GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS Central Semiconductor

Other Datasheets by Sunmate

Part Number Description
1SMC45 SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
1SMC45C SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
1SMC45CA SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
1SMC40 SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
1SMC400 SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

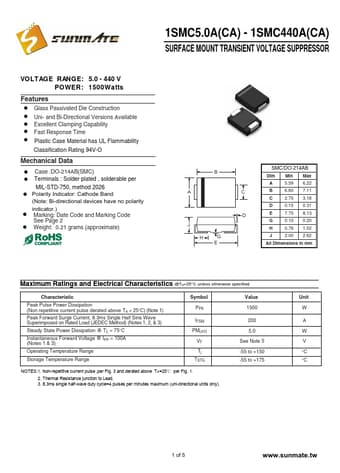

1SMC5.0A(CA) - 1SMC440A(CA) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR VOLTAGE RANGE: 5.0 - 440 V POWER: 1500Wa t t s Features ! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O Mechanical Data ! Case :DO-214AB(SMC) ! Terminals : Solder plated , solderable per MIL-STD-750, method 2026 ! Polarity Indicator: Cathode Band (Note: Bi-directional devices have no polarity indicator.) ! Marking: Date Code and Marking Code See Page 2 ! Weight: 0.21 grams (approximate) SMC/DO-214AB B Dim Min Max A 5.59 6.22 A C B 6.60 7.11 C 2.75 3.18 D 0.15 0.31 D E 7.75 8.13 G 0.10 0.20 J H 0.76 1.52 HG E J 2.00 2.
