1SMC400C - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Download the 1SMC400C datasheet PDF (1SMC5.0 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount transient voltage suppressor.

Features

  • ! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O Mechanical Data ! Case :DO-214AB(SMC) ! Terminals : Solder plated , solderable per MIL-STD-750, method 2026 ! Polarity Indicator: Cathode Band (Note: Bi-directional devices have no polarity indicator. ) ! Marking: Date Code and Marking Code See Page 2 ! Weight: 0.21 grams (approximate) SMC/DO-.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1SMC5.0-Sunmate.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1SMC400C
Manufacturer Sunmate
File Size 714.64 KB
Description SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Datasheet download datasheet 1SMC400C Datasheet

📁 Similar Datasheet

  • 1SMC40A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (Bruckewell)
  • 1SMC40A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (EIC)
  • 1SMC40A - SURFACE MOUNT SILICON UNI-DIRECTIONAL GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS (Central Semiconductor)
  • 1SMC40AT3 - Zener Transient Voltage Suppressors (ON Semiconductor)
  • 1SMC40AT3G - 1500 Watt Peak Power Zener Transient Voltage Suppressors (Littelfuse)
  • 1SMC40AT3G - Zener Transient Voltage Suppressors (ON Semiconductor)
  • 1SMC40CA - SURFACE MOUNT SILICON BI-DIRECTIONAL GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS (Central Semiconductor)
  • 1SMC43A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (Bruckewell)
  • 1SMC43A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (EIC)
  • 1SMC43A - SURFACE MOUNT SILICON UNI-DIRECTIONAL GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS (Central Semiconductor)
Other Datasheets by Sunmate
  • 1SMC400CA - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • 1SMC400 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • 1SMC400A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • 1SMC40 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • 1SMC40A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • 1SMC40C - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • 1SMC40CA - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • 1SMC43 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription

Click to expand full text

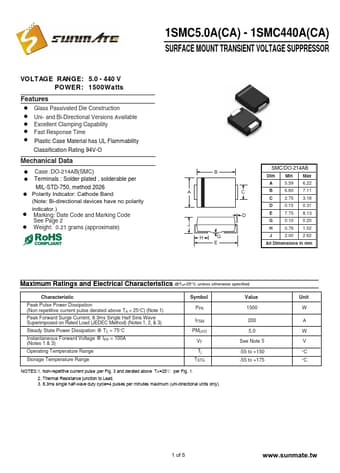

1SMC5.0A(CA) - 1SMC440A(CA) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR VOLTAGE RANGE: 5.0 - 440 V POWER: 1500Wa t t s Features ! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O Mechanical Data ! Case :DO-214AB(SMC) ! Terminals : Solder plated , solderable per MIL-STD-750, method 2026 ! Polarity Indicator: Cathode Band (Note: Bi-directional devices have no polarity indicator.) ! Marking: Date Code and Marking Code See Page 2 ! Weight: 0.21 grams (approximate) SMC/DO-214AB B Dim Min Max A 5.59 6.22 A C B 6.60 7.11 C 2.75 3.18 D 0.15 0.31 D E 7.75 8.13 G 0.10 0.20 J H 0.76 1.52 HG E J 2.00 2.
