1SMB350CA - SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE

Download the 1SMB350CA datasheet PDF. This datasheet also covers the 1SMB5.0 variant, as both devices belong to the same surface mount transient volage suppessor diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • ! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMB, Transfer Molded Epoxy ! Terminals: Solderable per MIL-STD-202, Method 208 ! Polarity Indicator: Cathode Band (Note: Bi-directional devices have no polarity indicator. ) ! Weight: 0.1 grams (approx. ) B SMB Dim Min Max A 3.30 3.94 A C B 4.06 4.70 C 1.91 2.21 D 0.15 0.31.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1SMB5.0-Sunmate.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1SMB350CA
Manufacturer Sunmate
File Size 861.71 KB
Description SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
Datasheet download datasheet 1SMB350CA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1SMB30A SURFACE MOUNT SILICON UNI-DIRECTIONAL GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS Central Semiconductor
1SMB30AT3 PLASTIC SURFACE MOUNT ZENER OVERVOLTAGE TRANSIENT SUPPRESSORS Motorola Inc
1SMB30AT3G 600 Watt Peak Power Zener TVS Littelfuse
1SMB30CA TVS Diodes Kexin
1SMB30CA SILICON BI-DIRECTIONAL GLASS PASSIVATED JUNCTION TVS Central Semiconductor

Other Datasheets by Sunmate

Part Number Description
1SMB350C SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
1SMB350 SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
1SMB350A SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
1SMB30 SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
1SMB300 SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

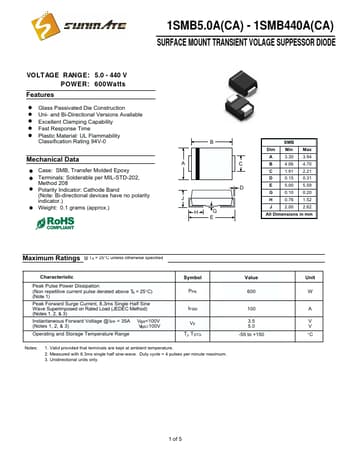

1SMB5.0A(CA) - 1SMB440A(CA) SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE VOLTAGE RANGE: 5.0 - 440 V POWER: 600Wa t t s Features ! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMB, Transfer Molded Epoxy ! Terminals: Solderable per MIL-STD-202, Method 208 ! Polarity Indicator: Cathode Band (Note: Bi-directional devices have no polarity indicator.) ! Weight: 0.1 grams (approx.) B SMB Dim Min Max A 3.30 3.94 A C B 4.06 4.70 C 1.91 2.21 D 0.15 0.31 D E 5.00 5.59 G 0.10 0.20 J H 0.76 1.52 HG E J 2.00 2.
