1SMA100C - SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE

Download the 1SMA100C datasheet PDF (1SMA5.0 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount transient volage suppessor diode.

Features

  • ! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx. ) B A J H G E SMA(DO-214AC) Dim Min Max C A 2.29 2.92 B 4.00 4.60 C 1.27 1.63 D D.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1SMA5.0-Sunmate.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1SMA100C
Manufacturer Sunmate
File Size 720.41 KB
Description SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
Datasheet download datasheet 1SMA100C Datasheet

📁 Similar Datasheet

  • 1SMA10 - 400 Watt Peak Power Zener Transient Voltage Suppressors (ON Semiconductor)
  • 1SMA10AT3 - Zener Transient Voltage Suppressors (Motorola Inc)
  • 1SMA10AT3 - 400 Watt Peak Power Zener Transient Voltage Suppressors (ON Semiconductor)
  • 1SMA10AT3G - 400 Watt Peak Power Zener Transient Voltage Suppressors (ON Semiconductor)
  • 1SMA10CAT3 - Zener Transient Voltage Suppressors (Motorola Inc)
  • 1SMA10CAT3 - (1SMAxxCAT3) 400 Watt Peak Power Zener Transient Voltage Suppressors (ON Semiconductor)
  • 1SMA10CAT3G - TVS Diodes (Littelfuse)
  • 1SMA10CAT3G - 400 Watt Peak Power Zener Transient Voltage Suppressors (ON Semiconductor)
  • 1SMA110A - SMD Zener Diode (FEC Semiconductor)
  • 1SMA110Z - 1.0Watts Surface Mount Silicon Zener Diode (LGE)
Other Datasheets by Sunmate
  • 1SMA100CA - SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
  • 1SMA100 - SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
  • 1SMA100A - SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
  • 1SMA10 - SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
  • 1SMA10A - SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
  • 1SMA10C - SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
  • 1SMA10CA - SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
  • 1SMA11 - SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE

Full PDF Text Transcription

Click to expand full text

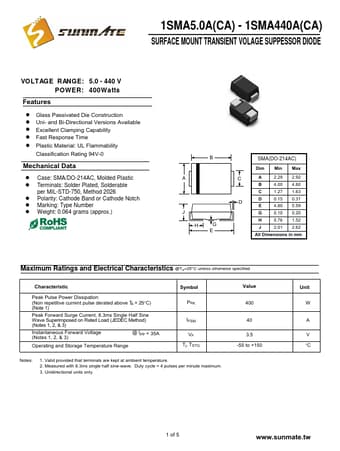

1SMA5.0A(CA) - 1SMA440A(CA) SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE VOLTAGE RANGE: 5.0 - 440 V POWER: 400Wa t t s Features ! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx.) B A J H G E SMA(DO-214AC) Dim Min Max C A 2.29 2.92 B 4.00 4.60 C 1.27 1.63 D D 0.15 0.31 E 4.80 5.59 G 0.10 0.20 H 0.76 1.52 J 2.01 2.
