1N914W - SURFACE MOUNT FAST SWITCHING DIODE

Name: 1N914W
SKU: 1N914W-1590553

Sunmate

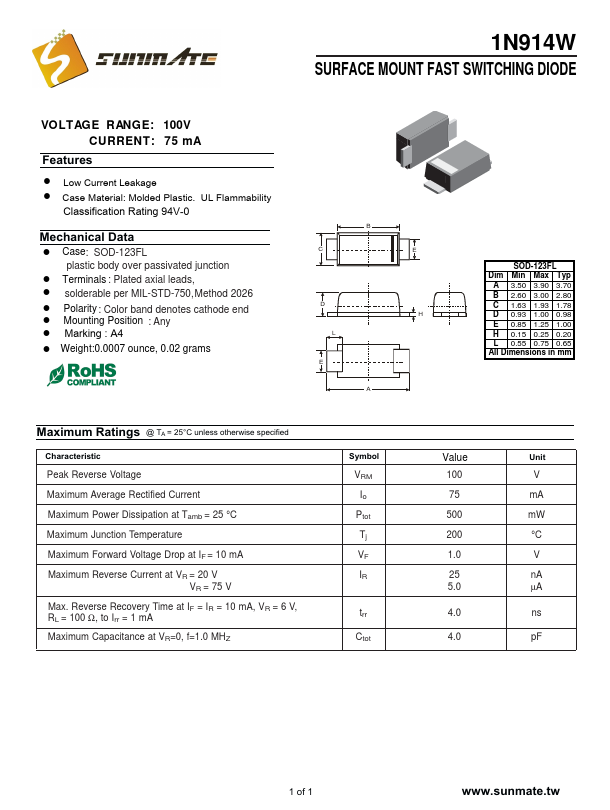

The 1N914W by Sunmate is a SURFACE MOUNT FAST SWITCHING DIODE. Below is the official datasheet preview.

Datasheet Details

Part number	1N914W
Manufacturer	Sunmate
File Size	879.27 KB
Description	SURFACE MOUNT FAST SWITCHING DIODE
Datasheet	1N914W-Sunmate.pdf
Additional preview pages of the 1N914W datasheet.

! Low Current Leakage ! Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SOD-123FL plastic body over passivated junction ! Terminals : Plated axial leads, ! solderable per MIL-STD-750,Method 2026 ! Polarity : Color band denotes cathode end ! Mounting Position : Any ! Marking : A4 ! Weight:0.0007 ounce, 0.02 grams B C E D H L E A SOD-123FL Dim Min Max Typ A 3.50 3.90 3.70 B 2.60 3.00 2.80 C 1.63 1.93 1.78 D 0.93 1.00 0.98 E 0.85 1.25 1.00 H 0.
