1N5398

The 1N5398 is AXIAL LEADED SILICON RECTIFIER DIODES designed by Sunmate.

Product Overview

Sunmate

Part number	1N5398, 1N5391
Manufacturer	Sunmate
File Size	285.09 KB
Description	AXIAL LEADED SILICON RECTIFIER DIODES
Datasheet	1N5391-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: 1N5398, 1N5391. Please refer to the document for exact specifications by model.

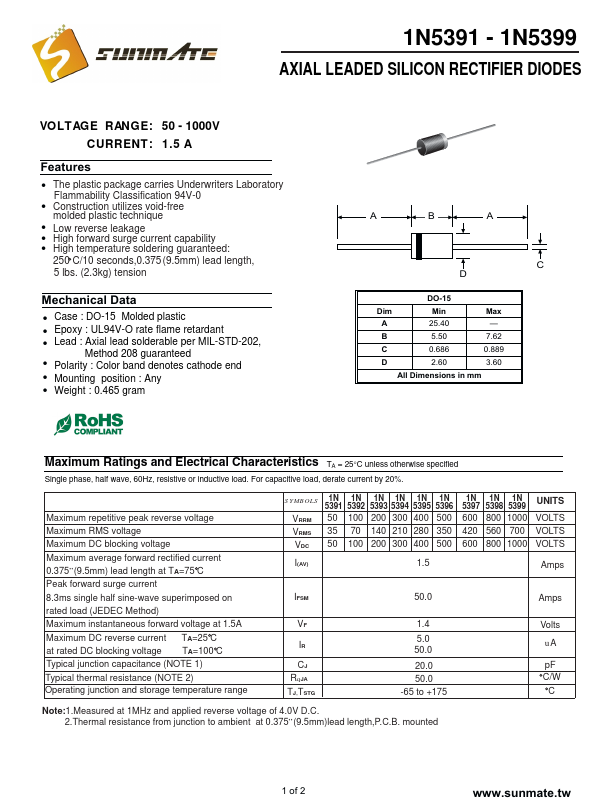

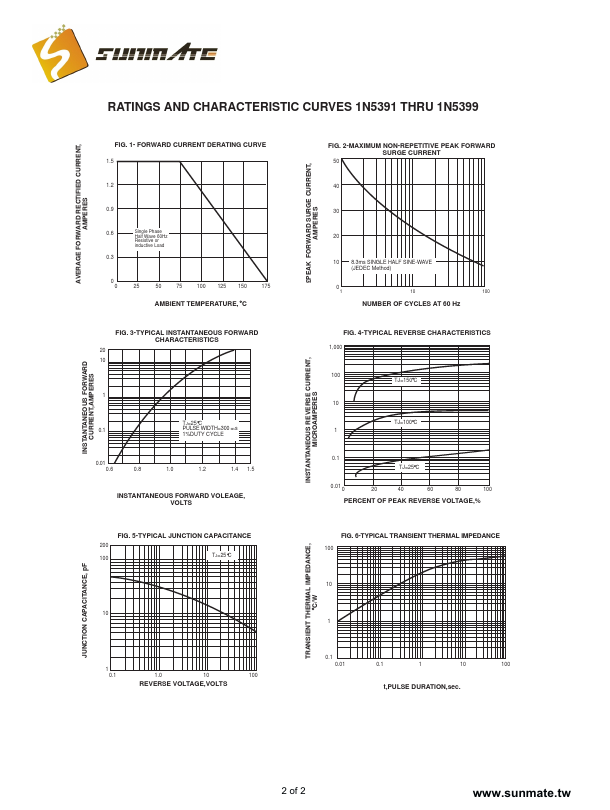

Additional preview pages of the 1N5398 datasheet.

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0.
Construction utilizes void-free molded plastic technique.
Low reverse leakage.
High forward surge current capability.
High temperature soldering guaranteed: 250 C/10 seconds,0.37” 5 (9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data.
Case : DO-15 Molded plastic.
Epoxy : UL94V-O rate flame retardant.
Lead : Axial lead solderable per MIL-STD-202, Method 208 guara.
