1N3064 - SMALL SIGNAL DIODES

Name: 1N3064
SKU: 1N3064-1590819

Sunmate

The 1N3064 by Sunmate is a SMALL SIGNAL DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	1N3064
Manufacturer	Sunmate
File Size	233.64 KB
Description	SMALL SIGNAL DIODES
Datasheet	1N3064-Sunmate.pdf

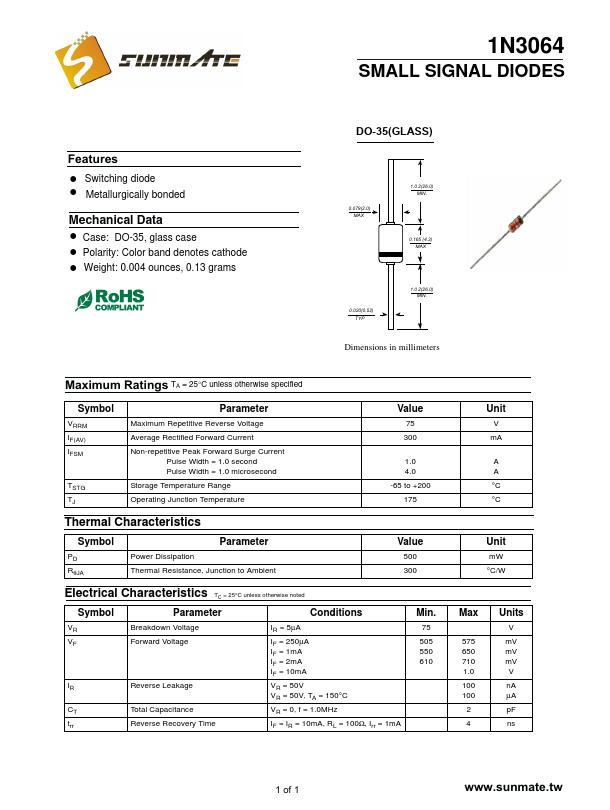

Additional preview pages of the 1N3064 datasheet.

! Switching diode ! Metallurgically bonded Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings TA = 25°C unless otherwise specified Symbol VRRM IF(AV) IFSM TSTG TJ Parameter Maximum Repetitive Reverse Voltage Average Rectified Forward Current Non-repetitive Peak Forward Surge Current Pulse.
