1N277

The 1N277 is AXIAL LEADED GOLG BONDED DIODES designed by Sunmate.

Product Overview

Sunmate

Part number	1N277
Manufacturer	Sunmate
File Size	225.18 KB
Description	AXIAL LEADED GOLG BONDED DIODES
Datasheet	1N277-Sunmate.pdf

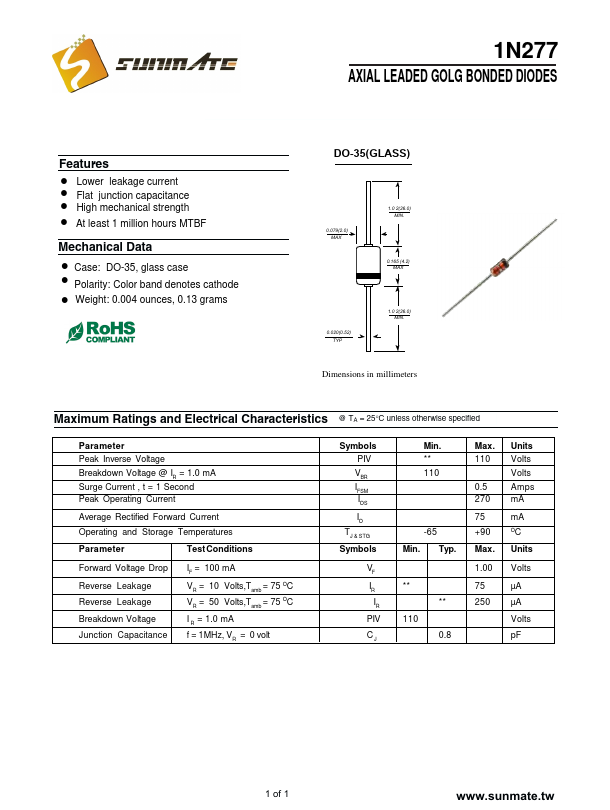

Additional preview pages of the 1N277 datasheet.

! Lower leakage current ! Flat junction capacitance ! High mechanical strength ! At least 1 million hours MTBF Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings and Electrical Characteristics @ TA = 25°C unless otherwise specified Parameter Peak Inverse Voltage Breakdown Voltage @ IR = 1.0.
