1N270

The 1N270 is AXIAL LEADED GOLD BONDED DIODES designed by Sunmate.

Product Overview

Sunmate

Part number	1N270
Manufacturer	Sunmate
File Size	253.98 KB
Description	AXIAL LEADED GOLD BONDED DIODES
Datasheet	1N270-Sunmate.pdf

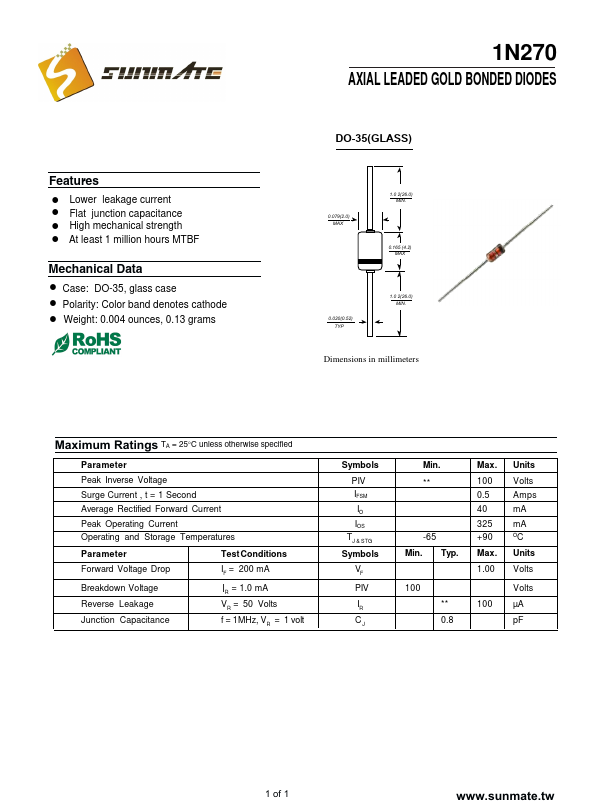

Additional preview pages of the 1N270 datasheet.

! Lower leakage current ! Flat junction capacitance ! High mechanical strength ! At least 1 million hours MTBF Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams 1N270 AXIAL LEADED GOLD BONDED DIODES DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings TA = 25°C unless otherwise specified Parameter Peak Inverse Voltage Surge Current , t = 1.
