10EDB40 - AXIAL LEADED SILICON RECTIFIER DIODES

Name: 10EDB40
SKU: 10EDB40-1591886

Sunmate

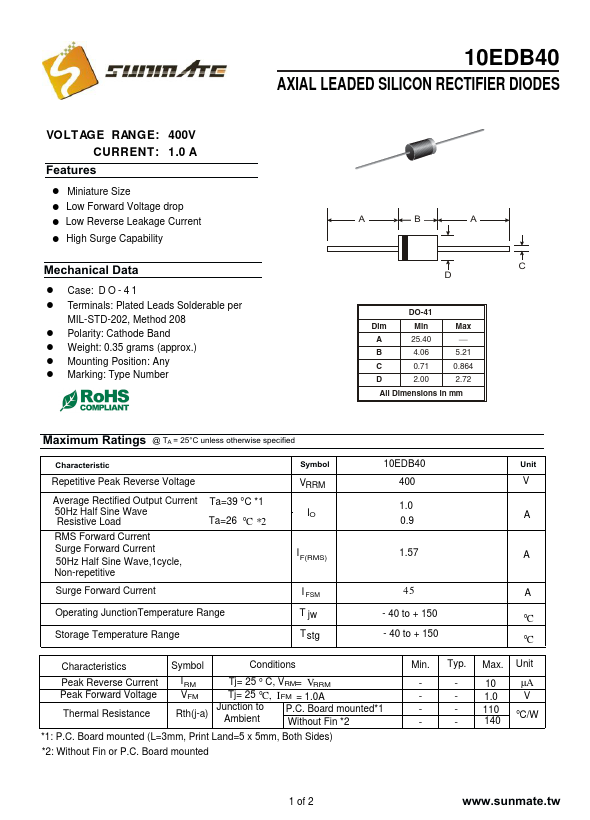

The 10EDB40 by Sunmate is a AXIAL LEADED SILICON RECTIFIER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	10EDB40
Manufacturer	Sunmate
File Size	384.43 KB
Description	AXIAL LEADED SILICON RECTIFIER DIODES
Datasheet	10EDB40-Sunmate.pdf

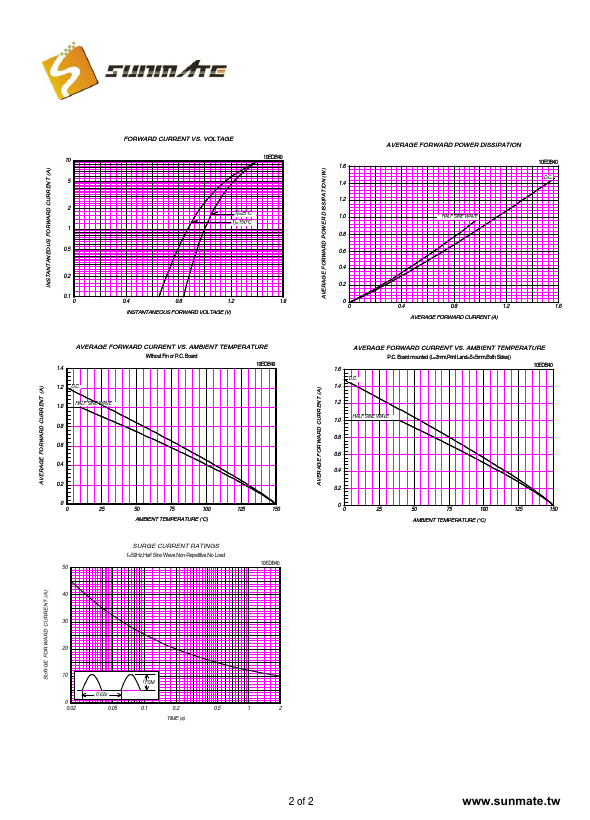

Additional preview pages of the 10EDB40 datasheet.

! Miniature Size ! Low Forward Voltage drop ! Low Reverse Leakage Current ! High Surge Capability Mechanical Data ! Case: D O - 4 1 ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.35 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number A B A C D DO-41 Dim Min Max A 25.40 ¾ B 4.06 5.21 C 0.71 0.864 D 2.00 2.72 All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Symbol 1.
