SWRH1205B - Wire Wound SMD Power Inductors

Download the SWRH1205B datasheet PDF. This datasheet also covers the SWRH0602B variant, as both devices belong to the same wire wound smd power inductors family and are provided as variant models within a single manufacturer datasheet.

Features

  • High saturation current, low DCR.
  • Suitable for surface mounting equipment.
  • Close magnetic circuit design reduce leakage.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SWRH0602B-Sunlord.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SWRH1205B
Manufacturer Sunlord
File Size 204.54 KB
Description Wire Wound SMD Power Inductors
Datasheet download datasheet SWRH1205B Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SWR200 Precision Sine Wave Reference APEX

Other Datasheets by Sunlord

Part Number Description
SWRH1204B Wire Wound SMD Power Inductors
SWRH1207B Wire Wound SMD Power Inductors
SWRH1004B Wire Wound SMD Power Inductors
SWRH0602B Wire Wound SMD Power Inductors
SWRH0604B Wire Wound SMD Power Inductors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

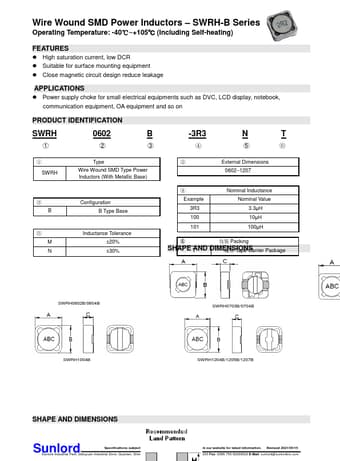

Wire Wound SMD Power Inductors – SWRH-B Series Operating Temperature: -40℃~+105℃ (Including Self-heating) FEATURES  High saturation current, low DCR  Suitable for surface mounting equipment  Close magnetic circuit design reduce leakage APPLICATIONS  Power supply choke for small electrical equipments such as DVC, LCD display, notebook, communication equipment, OA equipment and so on PRODUCT IDENTIFICATION SWRH 0602 B ① ② ③ -3R3 ④ N T ⑤ ⑥ ① SWRH ③ B ⑤ M N Type Wire Wound SMD Type Power Inductors (With Metallic Base) Configuration B Type Base Inductance Tolerance ±20% ±30% ② External Dimensions 0602~1207 ④ Example 3R3 100 101 Nominal Inductance Nominal Value 3.
