SWPA3015S, SWPA252010S - Wire Wound SMD Power Inductors

📥 Download Datasheet

SWPA3015S Datasheet Preview — This datasheet PDF includes multiple part numbers: SWPA3015S, SWPA252010S. Please refer to the document for exact specifications by model.

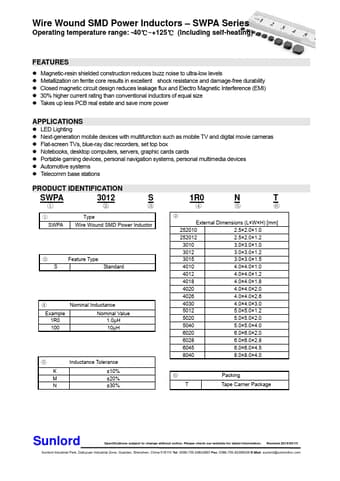

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SWPA3015S, SWPA252010S
Manufacturer: Sunlord
File Size: 1.15 MB
Datasheet: SWPA252010S-Sunlord.pdf
Description: Wire Wound SMD Power Inductors
Note: This datasheet PDF includes multiple part numbers: SWPA3015S, SWPA252010S.
Please refer to the document for exact specifications by model.

SWPA3015S Product details

Features

z Magnetic-resin shielded construction reduces buzz noise to ultra-low levels z Metallization on ferrite core results in excellent shock resistance and damage-free durability z Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI) z 30% higher current rating than conventional inductors of equal size z Takes up less PCB real estate and save more power.
