SPLC100A1 - 40-CHANNEL SEG/COM LCD DRIVER

SPLC100A1 Description

SPLC100A1 40-CHANNEL SEG/COM LCD DRIVER GENERAL .
The SPLC100A1 is a Liquid Crystal Display driver that contains two sets of 20-bit bi-directional shift registers, 20 data latch flip-flops and 20 Liqu.

SPLC100A1 Features

* 40-channel outputs that can be applied as common or segment driver. The SPLC100A1 receives serial display data from a display control LSI, converts it into parallel data and supplies liquid crystal display waveforms to the liquid crystal. FEATURES Liquid Crystal Display driver with serial/parallel

📥 Download Datasheet

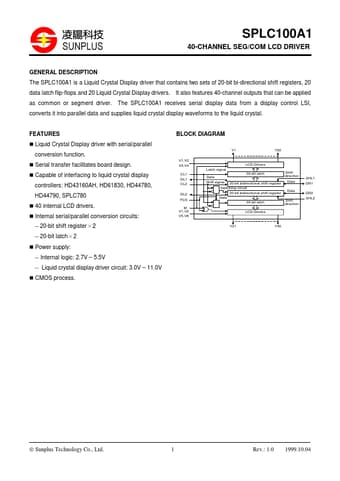

Preview of SPLC100A1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SPLC100A1
Manufacturer
SunPlus
File Size
161.27 KB
Datasheet
SPLC100A1_SunPlus.pdf
Description
40-CHANNEL SEG/COM LCD DRIVER
