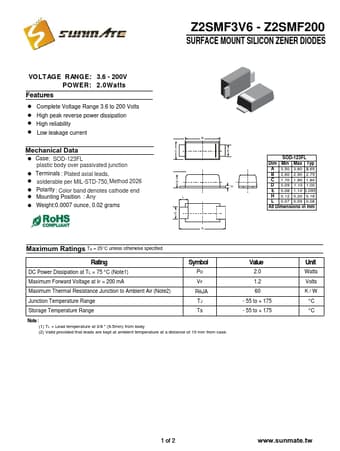

Z2SMF11, Z2SMF3V6 - SILICON ZENER DIODES

SunMate

Datasheet Details

Part number	Z2SMF11, Z2SMF3V6
Manufacturer	SunMate
File Size	126.67 KB
Description	SILICON ZENER DIODES
Datasheet	Z2SMF3V6-SunMate.pdf
Note	This datasheet PDF includes multiple part numbers: Z2SMF11, Z2SMF3V6. Please refer to the document for exact specifications by model.

! Complete Voltage Range 3.6 to 200 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case: SOD-123FL plastic body over passivated junction ! Terminals : Plated axial leads, ! solderable per MIL-STD-750,Method 2026 ! Polarity : Color band denotes cathode end ! Mounting Position : Any ! Weight:0.0007 ounce, 0.02 grams B C E D H L E A SOD-123FL Dim Min Max Typ A 3.50 3.80 3.65 B 2.60 2.90 2.75 C 1.70 1.90 1.80 D 0.09 1.10 1.00 E 0.08 1.10 0.
