SMZ14, SMZ3V6 - SURFACE MOUNT SILICON ZENER DIODES

SunMate

📥 Download Datasheet

SMZ14 Datasheet Preview — This datasheet PDF includes multiple part numbers: SMZ14, SMZ3V6. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

Datasheet Details

Part number: SMZ14, SMZ3V6
Manufacturer: SunMate
File Size: 397.20 KB
Datasheet: SMZ3V6-SunMate.pdf
Description: SURFACE MOUNT SILICON ZENER DIODES
Note: This datasheet PDF includes multiple part numbers: SMZ14, SMZ3V6.
Please refer to the document for exact specifications by model.

SMZ14 Product details

Features

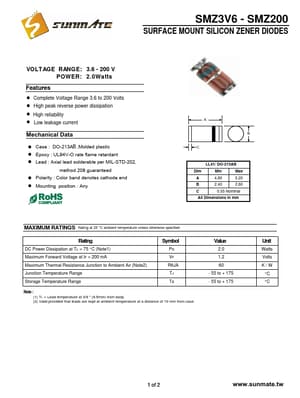

! Complete Voltage Range 3.6 to 200 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case : DO-213AB ,Molded plastic ! Epoxy : UL94V-O rate flame retardant ! Lead : Axial lead solderable per MIL-STD-202, method 208 guaranteed ! Polarity : Color band denotes cathode end ! Mounting position : Any A B C LL41//DO-213AB Dim Min Max A 4.80 5.20 B 2.40 2.60 C 0.55 Nominal All Dimensions in mm.
