SMBFJ11 - SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR

Product Overview

SunMate

Part number	SMBFJ11
Manufacturer	SunMate
File Size	673.98 KB
Description	SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR
Datasheet	SMBFJ11 Datasheet
Note	This datasheet PDF includes multiple part numbers: SMBFJ11, SMBFJ5.0. Please refer to the document for exact specifications by model.

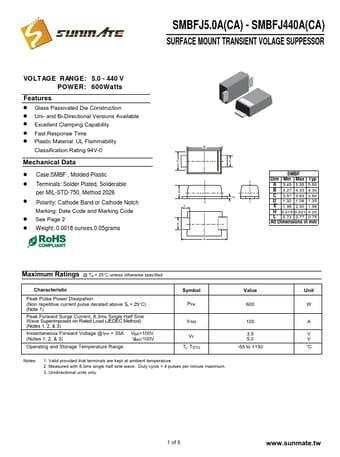

Additional preview pages of the SMBFJ11 datasheet.

! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case:SMBF , Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch Marking: Date Code and Marking Code ! See Page 2 ! Weight: 0.0018 ounces,0.05grams B CE D L E A H SMBF Dim Min Max Typ A 5.45 5.55 5.50 B 4.27.
