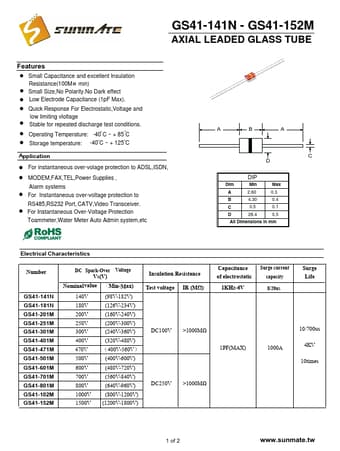

GS41-141N - GS41-152M
AXIAL LEADED GLASS TUBE
Features
! Small Capacitance and excellent Insulation
Resistance(100M Ω min) ! Small Size,No Polarity.No Dark effect
! Low Electrode Capacitance (1pF Max).
! Quick Response For Electrostatic,Voltage and
low limiting vloltage ! Stable for repeated discharge test conditions.
!
Operating Temperature:
-40O C
~
+
85
O
C
! Storage temperature: -40OC ~ + 125OC
Application
! For instantaneous over-volage protection to ADSL,ISDN,
! MODEM,FAX,TEL,Power Supplies ,
Alarm systems ! For Instantaneous over-voltage protection to
RS485,RS232 Port, CATV,Video Transceiver. ! For Instantaneous Over-Voltage Protection
Toammeter,Water Meter Auto Admin system,etc
A
B
A
C D
DIP
Dim
Min
Max
A
2.60
0.3
B
4.30
0.4
C
0.5
0.1
D
28.4
0.
GS41-152M Datasheet
