1SMBF5941B - SURFACE MOUNT SILICON ZENER DIODES

Download the 1SMBF5941B datasheet PDF. This datasheet also covers the 1SMBF5913B variant, as both devices belong to the same surface mount silicon zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • ! Complete Voltage Range 3.3 to 240 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case:SMBF , Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.0018 ounces,0.05grams B C D L E A Maximum Ratings TA = 25°C unless otherwise specified Rating DC Power Dissipation @ TL = 75 °C Measured zero lead length(1" square copper pad, FR-4 board.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1SMBF5913B-SunMate.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1SMBF5941B
Manufacturer SunMate
File Size 228.11 KB
Description SURFACE MOUNT SILICON ZENER DIODES
Datasheet download datasheet 1SMBF5941B Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1SMB100A SURFACE MOUNT SILICON UNI-DIRECTIONAL GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS Central Semiconductor
1SMB100AT3 PLASTIC SURFACE MOUNT ZENER OVERVOLTAGE TRANSIENT SUPPRESSORS Motorola Inc
1SMB100AT3 (1SMBxxxAT3) 600 Watt Peak Power Zener Transient Voltage Suppressors ON Semiconductor
1SMB100AT3G 600 Watt Peak Power Zener TVS Littelfuse
1SMB100CA SILICON BI-DIRECTIONAL GLASS PASSIVATED JUNCTION TVS Central Semiconductor

Other Datasheets by SunMate

Part Number Description
1SMBF5940B SURFACE MOUNT SILICON ZENER DIODES
1SMBF5942B SURFACE MOUNT SILICON ZENER DIODES
1SMBF5943B SURFACE MOUNT SILICON ZENER DIODES
1SMBF5944B SURFACE MOUNT SILICON ZENER DIODES
1SMBF5945B SURFACE MOUNT SILICON ZENER DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

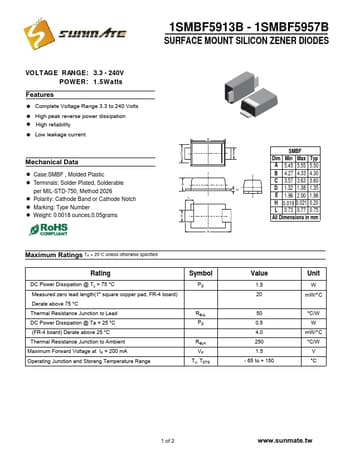

1SMBF5913B - 1SMBF5957B SURFACE MOUNT SILICON ZENER DIODES VOLTAGE RANGE: 3.3 - 240V POWER: 1.5Wa t t s Features ! Complete Voltage Range 3.3 to 240 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case:SMBF , Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.0018 ounces,0.
