15KP16C, 15KP12 - AXIAL LEAD TRANSIENT VOLTAGE SUPPRESSOR DIODE

Name: 15KP16C
SKU: 15KP16C-1343832

SunMate

The 15KP16C by SunMate is a AXIAL LEAD TRANSIENT VOLTAGE SUPPRESSOR DIODE. Below is the official datasheet preview.

Datasheet Details

Part number	15KP16C, 15KP12
Manufacturer	SunMate
File Size	471.07 KB
Description	AXIAL LEAD TRANSIENT VOLTAGE SUPPRESSOR DIODE
Datasheet	15KP12-SunMate.pdf
Note	This datasheet PDF includes multiple part numbers: 15KP16C, 15KP12. Please refer to the document for exact specifications by model.

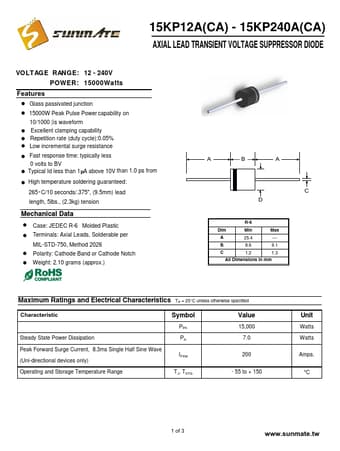

Additional preview pages of the 15KP16C datasheet.

! Glass passivated junction ! 15000W Peak Pulse Power capability on 10/1000 |ìs waveform ! Excellent clamping capability ! Repetition rate (duty cycle):0.05% ! Low incremental surge resistance ! Fast response time: typically less 0 volts to BV ! Typical Id less than 1µA above 10V than 1.0 ps from ! High temperature soldering guaranteed: 265° C/10 seconds/.375", (9.5mm) lead length, 5lbs. , (2.3kg) tension Mechanical Data ! Case: JEDEC R-6 Molded Plastic ! Terminals: Axial Leads, Solderable per MI.
