XMUG60A - DOT MATRIX DISPLAY

SunLED

The XMUG60A by SunLED is a DOT MATRIX DISPLAY. Below is the official datasheet preview.

📥 Download Datasheet

XMUG60A DOT MATRIX DISPLAY by SunLED - Datasheet Preview — Official preview page of the **XMUG60A** DOT MATRIX DISPLAY datasheet (SunLED).

Datasheet Details

Part number	XMUG60A
Manufacturer	SunLED
File Size	227.22 KB
Description	DOT MATRIX DISPLAY
Datasheet	XMUG60A-SunLED.pdf

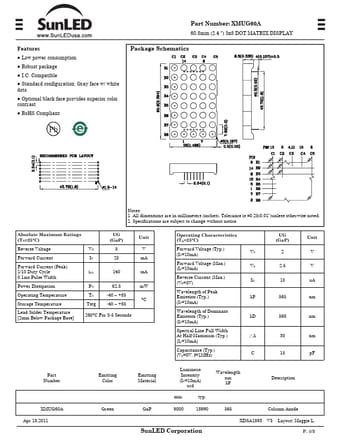

Additional preview pages of the XMUG60A datasheet.

XMUG60A Product details

Description

GaP 9000 18990 565 Column Anode SunLED Corporation XDSA1893 V5 Layout: Maggie L.P.1/3 UG Part Number: XMUG60A 60.8mm (2.4 ") 5x8 DOT MATRIX DISPLAY Apr 18,2011 Remarks: If special sorting is required (e.g.binning based on forward voltage, luminous intensity / luminous flux, or wavelength), the typical accuracy of the sorting process is as follows: 1. Wavelength: +/-1nm 2. Luminous Intensity / Luminous Flux: +/-15% 3. Forward Voltage: +/-0.1V Note: Accuracy may depend on the sorti

Features

Low power consumption.
Robust package.
I. C. Compatible.
Standard configuration: Gray face w/ white dots.
Optional black face provides superior color contrast.
RoHS Compliant Package Schematics Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted. 2. Specifications are subject to change without notice. Absolute Maximum Ratings (TA=25°C) UG (GaP) Reverse Voltage VR 5 Forward Current IF 25 Forward Current (Pe.
