CDRH50D20T150NP-220MC, CDRH50D20T150 - SMD POWER INDUCTORS

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CDRH50D20T150NP-220MC, CDRH50D20T150. Please refer to the document for exact specifications by model.

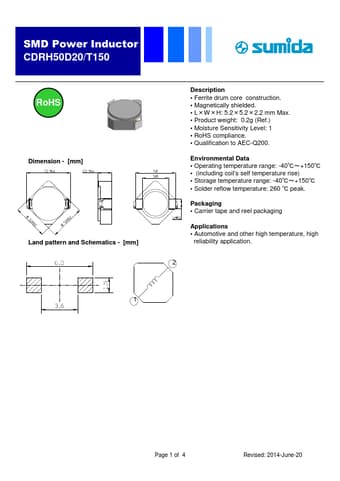

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number CDRH50D20T150NP-220MC, CDRH50D20T150
Manufacturer Sumida
File Size 93.72 KB
Description SMD POWER INDUCTORS
Datasheet download datasheet CDRH50D20T150_Sumida.pdf
Note This datasheet PDF includes multiple part numbers: CDRH50D20T150NP-220MC, CDRH50D20T150.
Please refer to the document for exact specifications by model.

CDRH50D20T150NP-220MC Product details

Description

Ferrite drum core construction. Magnetically shielded. L×W×H: 5.2×5.2×2.2 mm Max. Product weight: 0.2g (Ref.) Moisture Sensitivity Level: 1 RoHS compliance. Qualification to AEC-Q200. Operating temperature range: -40℃～+150℃ (including coil’s self temperature rise) Storage temperature range: -40℃～+150℃ Solder reflow temperature: 260 ℃ peak. Carrier t
