CDRH40D28T125-220NC - SMD POWER INDUCTORS

Download the CDRH40D28T125-220NC datasheet PDF (CDRH40D28T125 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for smd power inductors.

Description

Ferrite drum core construction.

Magnetically shielded.

L×W×H:4.5×4.5×3.0mm Max.

Product weight:0.13 g (Ref.) Moisture Sensitivity Level: 1 New Recommended Type Environmental Data Operating temperature range: -40℃～+125℃ (including coil’s s

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CDRH40D28T125-Sumida.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CDRH40D28T125-220NC
Manufacturer Sumida
File Size 309.91 KB
Description SMD POWER INDUCTORS
Datasheet download datasheet CDRH40D28T125-220NC Datasheet

📁 Similar Datasheet

  • CDRH40D18A - Power Inductor (Sumida Corporation)
  • CDRH4D14 - SMD Power Inductor (Sumida Corporation)
  • CDRH4D14HP - (CDRH Series) POWER INDUCTORS (Sumida Corporation)
  • CDRH4D18 - SMD POWER INDUCTORS (Sumida Corporation)
  • CDRH4D18 - (CDR / CDRH Series) Surface Mount Power Inductors (ECM Electronics)
  • CDRH4D18C - SMD POWER INDUCTORS (Sumida Corporation)
  • CDRH4D18LD - (CDRH Series) POWER INDUCTORS (Sumida Corporation)
  • CDRH4D19F - (CDRH Series) POWER INDUCTORS (Sumida Corporation)
  • CDRH4D22 - POWER INDUCTORS (Sumida Corporation)
  • CDRH4D28C - (CDRH Series) POWER INDUCTORS (Sumida Corporation)
Other Datasheets by Sumida

Full PDF Text Transcription

Click to expand full text

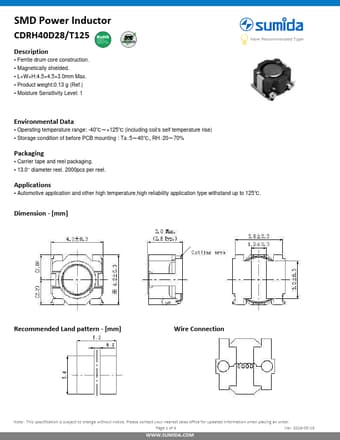

SMD Power Inductor CDRH40D28/T125 Description • Ferrite drum core construction. • Magnetically shielded. • L×W×H:4.5×4.5×3.0mm Max. • Product weight:0.13 g (Ref.) • Moisture Sensitivity Level: 1 New Recommended Type Environmental Data • Operating temperature range: -40℃～+125℃ (including coil’s self temperature rise) • Storage condition of before PCB mounting : Ta：5～40℃、RH：20～70% Packaging • Carrier tape and reel packaging. • 13.0” diameter reel. 2000pcs per reel. Applications • Automotive application and other high temperature,high reliability application type withstand up to 125℃. Dimension - [mm] Recommended Land pattern - [mm] Wire Connection Note： This specification is subject to change without notice.
