CDRH2D09NP-2R2MC - SMD Power Inductor

Download the CDRH2D09NP-2R2MC datasheet PDF (CDRH2D09 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for smd power inductor.

Description

Ferrite drum core construction.

Magnetically shielded.

L W H:3.2 3.2 1.0 mm Max.

Product weight: 28mg(Ref.) Moisture Sensitivity Level: 1

RoHS compliance.

Halogen Free available.

Operating te

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CDRH2D09-Sumida.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CDRH2D09NP-2R2MC
Manufacturer Sumida
File Size 188.97 KB
Description SMD Power Inductor
Datasheet download datasheet CDRH2D09NP-2R2MC Datasheet

📁 Similar Datasheet

  • CDRH2D11 - SMD Power Inductor (Sumida Corporation)
  • CDRH2D14 - SMD POWER INDUCTORS (Sumida Corporation)
  • CDRH103R - SMD Power Inductor (Sumida Corporation)
  • CDRH103R - (CDR / CDRH Series) Surface Mount Power Inductors (ECM Electronics)
  • CDRH104 - CDRH104 (Sumida Corporation)
  • CDRH104R - POWER INDUCTORS (Sumida Corporation)
  • CDRH104R - (CDR / CDRH Series) Surface Mount Power Inductors (ECM Electronics)
  • CDRH105R - SMD POWER INDUCTORS (Sumida Corporation)
  • CDRH105R - (CDR / CDRH Series) Surface Mount Power Inductors (ECM Electronics)
  • CDRH10D43F - (CDRH Series) POWER INDUCTORS (Sumida Corporation)
Other Datasheets by Sumida

Full PDF Text Transcription

Click to expand full text

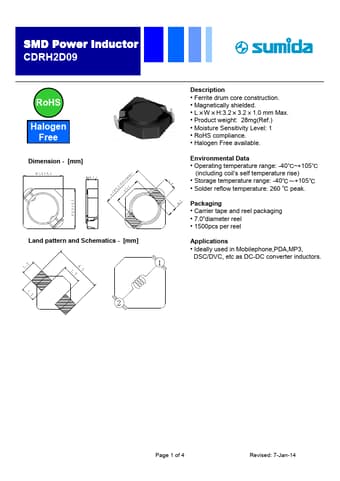

SMD Power Inductor CDRH2D09 RoHS Halogen Free Dimension - [mm] ※3.0±0.2 MAX.1.0 ※3.0±0.2 3.3±0.2(ELEφCT2R.O1DE) Land pattern and Schematics - [mm] 1.3 1.7 4.3 1.3 2 Description • Ferrite drum core construction. × × × ×• Magnetically shielded. • L W H:3.2 3.2 1.0 mm Max. • Product weight: 28mg(Ref.) • Moisture Sensitivity Level: 1 • RoHS compliance. • Halogen Free available. ℃ ℃Environmental Data • Operating temperature range: -40 ~+105 (including coil’s self temperature rise) ℃～ ℃1.0 • Storage temperature range: -40 +105 ℃• Solder reflow temperature: 260 peak. 0.7 Packaging • Carrier tape and reel packaging • 7.0”diameter reel • 1500pcs per reel Applications • Ideally used in Mobilephone,PDA,MP3, DSC/DVC, etc as DC-DC converter inductors.
