CDRH10D43RNP-1R2PC - SMD Power Inductor

Product Overview

📥 Download Datasheet

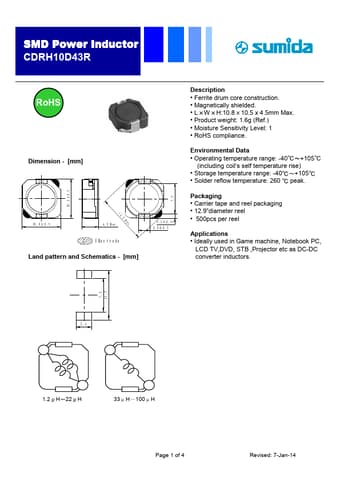

Datasheet preview – CDRH10D43RNP-1R2PC

Datasheet Details

Part number CDRH10D43RNP-1R2PC
Manufacturer Sumida
File Size 173.69 KB
Description SMD Power Inductor
Datasheet download datasheet CDRH10D43RNP-1R2PC Datasheet
Note This datasheet PDF includes multiple part numbers: CDRH10D43RNP-1R2PC, CDRH10D43R.
Please refer to the document for exact specifications by model.
Additional preview pages of the CDRH10D43RNP-1R2PC datasheet.

Product details

Description

Ferrite drum core construction. Magnetically shielded. L W H:10.8 10.5 x 4.5mm Max. Product weight: 1.6g (Ref.) Moisture Sensitivity Level: 1 RoHS compliance. Operating temperature range: -40 +105 (including coil’s self temperature rise) ℃～ ℃ Storage temperature range: -40 +105 ℃ Solder reflow temperature: 260 peak. Carrier tape and reel packaging
