CDEP15D90T150NP-220MC-125, CDEP15D90T150 Low-Profile High Current Power Inductor

Sumida

Description

Low-Profile High Current Power Inductor CDEP15D90/T150 .
Inductor for high withstand voltage (DC 120V) and large current. Magnetically shielded. Qualified AEC-Q200. Operating temperature.

📥 Download Datasheet

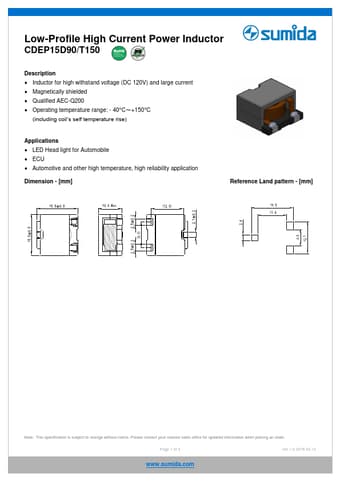

CDEP15D90T150NP-220MC-125 Datasheet Preview — This datasheet PDF includes multiple part numbers: CDEP15D90T150NP-220MC-125, CDEP15D90T150. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: CDEP15D90T150NP-220MC-125, CDEP15D90T150
Manufacturer: Sumida
File Size: 657.84 KB
Datasheet: CDEP15D90T150-Sumida.pdf
Description: Low-Profile High Current Power Inductor
Note: This datasheet PDF includes multiple part numbers: CDEP15D90T150NP-220MC-125, CDEP15D90T150.
Please refer to the document for exact specifications by model.

Applications

* LED Head light for Automobile
* ECU
* Automotive and other high temperature, high reliability application Dimension - [mm] Reference Land pattern - [mm] 15.5±0.5 10.0 Max. (12.0) 16.5 11.4 2.1±0.2 2.4 2.5±0.2 6.5 12.7 (9.6) 15.5±0.5 2.5±0.2 Note： This specification is subje
