CDEP159NP-180MC-110, CDEP159 - SMD Power Inductor

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CDEP159NP-180MC-110, CDEP159. Please refer to the document for exact specifications by model.

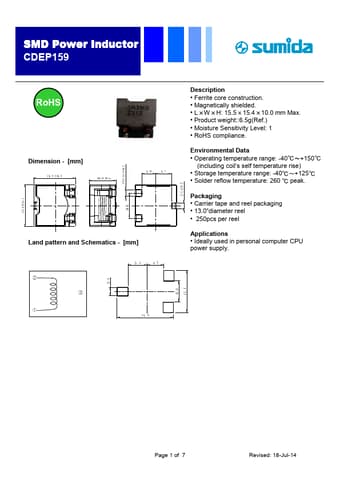

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number CDEP159NP-180MC-110, CDEP159
Manufacturer Sumida
File Size 274.44 KB
Description SMD Power Inductor
Datasheet download datasheet CDEP159-Sumida.pdf
Note This datasheet PDF includes multiple part numbers: CDEP159NP-180MC-110, CDEP159.
Please refer to the document for exact specifications by model.

CDEP159NP-180MC-110 Product details

Description

Ferrite core construction. Magnetically shielded. L W H: 15.5 15.4 10.0 mm Max. Product weight::6.5g(Ref.) Moisture Sensitivity Level: 1 RoHS compliance. Operating temperature range: -40 +150 (including coil’s self temperature rise) ℃～ ℃ Storage temperature range: -40 +125 ℃0.2 Solder reflow temperature: 260 peak. Carrier tape and reel packaging
