EM1050P, EM1050 Datasheet - Suberton

EM1050-Suberton.pdf

This datasheet PDF includes multiple part numbers: EM1050P, EM1050. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EM1050P, EM1050

Manufacturer:

Suberton

File Size:

871.66 KB

Description:

Omnidirectional electret condenser microphone.

Note:

This datasheet PDF includes multiple part numbers: EM1050P, EM1050.
Please refer to the document for exact specifications by model.

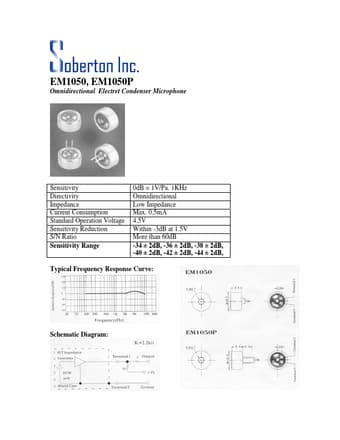

EM1050P, EM1050, Omnidirectional Electret Condenser Microphone

EM1050, EM1050P Omnidirectional Electret Condenser Microphone Sensitivity Directivity Impedance Current Consumption Standard Operation Voltage Sensitivity Reduction S/N Ratio Sensitivity Range 0dB = 1V/Pa.

1KHz Omnidirectional Low Impedance Max.

0.5mA 4.5V Within -3dB at 1.5V More than 60dB -34 ± 2dB, -36 ± 2dB, -38 ± 2dB, -40 ± 2dB, -42 ± 2dB, -44 ± 2dB, Typical Frequency Response Curve: Schematic Diagram:
