SM7985-43 - 7900-8500 MHz 20 Watt Linear Power Amplifier

The SM7985-43 by Stealth Microwave is a 7900-8500 MHz 20 Watt Linear Power Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

SM7985-43 7900-8500 MHz 20 Watt Linear Power Amplifier by Stealth Microwave - Datasheet Preview — Official preview page of the **SM7985-43** 7900-8500 MHz 20 Watt Linear Power Amplifier datasheet (Stealth Microwave).

Datasheet Details

Part number	SM7985-43
Manufacturer	Stealth Microwave
File Size	146.66 KB
Description	7900-8500 MHz 20 Watt Linear Power Amplifier
Datasheet	SM7985-43_StealthMicrowave.pdf

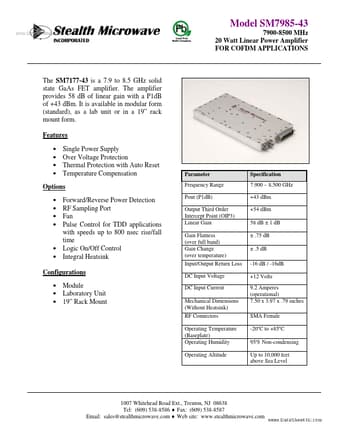

Additional preview pages of the SM7985-43 datasheet.

SM7985-43 Product details

Description

Input Connector ( SMA Female ) Output Connector (SMA Female) RF Sample Port (SMA Female ) Ground Turret Forward Power Detector Reverse Power Detector DC Input Voltage TTL Logic On/Off TTL Pulse Control Values - 17 dBm (typ.) + 43 dBm min @ P1dB 30 dBr --+ 39 dBm Output Power ≈ + 5.0 Volts ∞ VSWR @ + 39 dBm ≈ + 4.0 Volts + 12 Volts @ 9.2 Amperes.(operational) 0 Volts = Off, + 5 Volts = On Rates < 800 nsec Specifications subject to change without notice.1007 Whitehead Road Ext., Trenton, NJ 0

Features

Single Power Supply Over Voltage Protection Thermal Protection with Auto Reset Temperature Compensation Parameter Frequency Range Pout (P1dB) Output Third Order Intercept Point (OIP3) Linear Gain Gain Flatness (over full band) Gain Change (over temperature) Input/Output Return Loss Specification 7.900.
8.500 GHz +43 dBm +54 dBm 58 dB ± 1 dB ± .75 dB ± .5 dB -16 dB / -16dB +12 Volts 9.2 Amperes (operational) 7.50 x 3.97 x .79 inches SMA Female -2.
