SCT2210 - 16-bit Serial-In/Parallel-Out Constant-Current LED Driver

Description

The SCT2210 serial-interfaced LED driver sinks 16 LED clusters with constant current to keep the uniform intensity of LED displays.

In applications, an external resistor is used to set the full-scale constant output current from 5mA up to 90mA.

Features

  • 16 constant-current outputs rate at 17V Constant current range: 5.
  • 90mA Excellent current regulation to load, supply voltage and temperatur.

📥 Download Datasheet

Datasheet Details

Part number SCT2210
Manufacturer StarChips
File Size 497.91 KB
Description 16-bit Serial-In/Parallel-Out Constant-Current LED Driver
Datasheet download datasheet SCT2210 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SCT2230 3A Synchronous Step-down DCDC Converter SCT
SCT2260 remote control encoder Silvan Chip
SCT2272GM Wireless remote control decoding circuit Silvan Chip
SCT2280KE N-channel SiC power MOSFET ROHM
SCT2001 2 0mm Pitch Crimp Connector Scondar

Other Datasheets by StarChips

Part Number Description
SCT2280 16-bit Parallel-In/Parallel-Out Constant Current Driver
SCT2001 3-Channel Constant Constant Driver
SCT2004 4-Channel High Constant Current Driver
SCT2004S 4-Channel Constant Current Driver
SCT2024 16-bit Serial-In/Parallel-Out Constant-Current LED Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

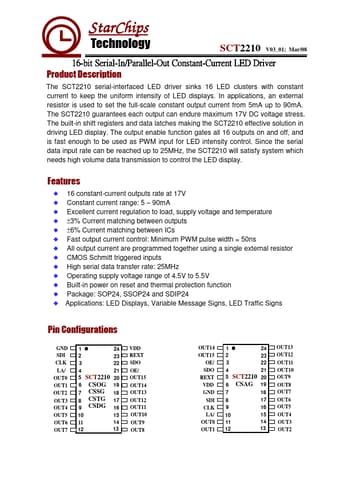

StarChips Technology SCT2210 V03_01; Mar/08 16-bit Serial-In/Parallel-Out Constant-Current LED Driver Product Description The SCT2210 serial-interfaced LED driver sinks 16 LED clusters with constant current to keep the uniform intensity of LED displays. In applications, an external resistor is used to set the full-scale constant output current from 5mA up to 90mA. The SCT2210 guarantees each output can endure maximum 17V DC voltage stress. The built-in shift registers and data latches making the SCT2210 effective solution in driving LED display. The output enable function gates all 16 outputs on and off, and is fast enough to be used as PWM input for LED intensity control.
