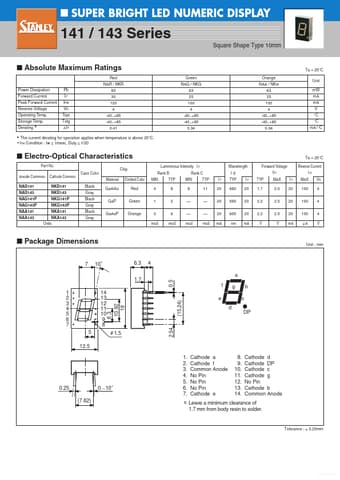

I SUPER BRIGHT LED NUMERIC DISPLAY
141 / 143 Series
Square Shape Type 10mm
I Absolute Maximum Ratings
Red NAR / NKR Power Dissipation Forward Current Peak Forward Current Reverse Voltage Operating Temp. Storage Temp. Derating * Pb IF IFM VR Topr Tstg ∆IF 60 30 120 4 -40~+85 -40~+85 0.41 Green NAG / NKG 63 25 100 4 -40~+85 -40~+85 0.34 Orange NAA / NKA 63 25 100 4 -40~+85 -40~+85 0.34
Ta = 25°C Unit mW mA mA V °C °C mA / °C
* The current derating for operation applies when temperature is above 25°C.
• IFM Condition : tw ≤ _ 1msec, Duty ≤ _ 1/20
I Electro-Optical Characteristics
Part No.
