FY1105W Dome Lens Type AllnGaP SMT LED

FY1105W Description

Product Guide F_1105W Series, Dome Lens Type AlInGaP SMT LED s .

FY1105W Features

* High brightness AllnGaP die material
* Dome lens provides intensified narrow, bright beam
* Available for both standard and reverse mounting

FY1105W Applications

* High-beam indicator for automotive use
* Backlighting for automotive dashboards
* Indoor / outdoor full-color signboards s Outline Dimensions s Recommended Solder Pad at Surface Mount 1.55 0.6 www. DataSheet4U. com s Recommended Solder Pad at reverse mount 1.6 1.5 HOLE 0.

📥 Download Datasheet

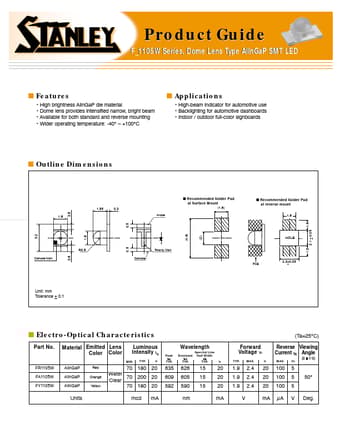

Preview of FY1105W PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FY1105W
Manufacturer
Stanley
File Size
186.37 KB
Datasheet
FY1105W_Stanley.pdf
Description
Dome Lens Type AllnGaP SMT LED
