SNA-276, Cascadable GaAs MMIC Amplifier

Product .
Stanford Microdevices’ SNA-276 is a GaAs monolithic broadband amplifier (MMIC) housed in a low-cost surface mountable stripline package.

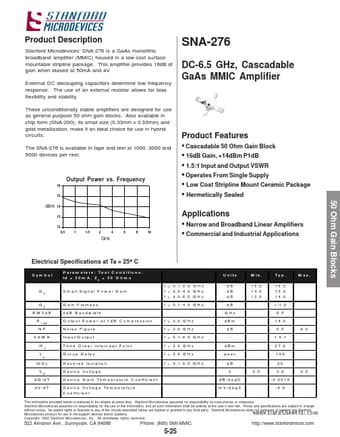

datasheet Preview Page 1 from Datasheet4u.com

SNA-276_StanfordMicrodevices.pdf

SNA-276 Datasheet Preview — Preview of SNA-276 PDF

Datasheet Details

Part number:

SNA-276

Manufacturer:

Stanford Microdevices

File Size:

87.00 KB

Description:

Cascadable GaAs MMIC Amplifier

Features

* Cascadable 50 Ohm Gain Block
* 16dB Gain, +14dBm P1dB
* 1.5:1 Input and Output VSWR
* Operates From Single Supply
* Low Cost Stripline Mount Ceramic Package

Applications

* Narrow and Broadband Linear Amplifiers
* Commercial and Industrial Applications dBm 14 13 12 0.5 1 1.5 2 4 6 8 10 GHz Electrical Specifications at Ta = 25° C S ym bol P a r a m e te r s : T e s t C o n d it io n s : Id = 5 0 m A , Z 0 = 5 0 O h m s S m a ll S ig n a l P o w e r
