ZV130K1812, ZV11K0603 - Low Voltage SMD Varistors

Stackpole

📥 Download Datasheet

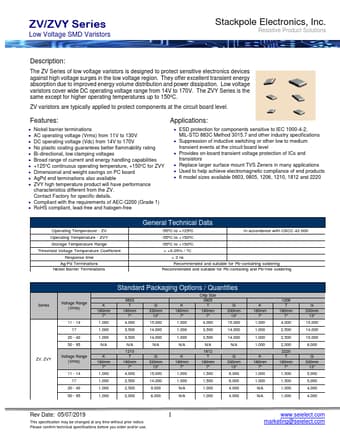

ZV130K1812 Datasheet Preview — This datasheet PDF includes multiple part numbers: ZV130K1812, ZV11K0603. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ZV130K1812, ZV11K0603
Manufacturer	Stackpole
File Size	594.11 KB
Description	Low Voltage SMD Varistors
Datasheet	ZV11K0603-Stackpole.pdf
Note	This datasheet PDF includes multiple part numbers: ZV130K1812, ZV11K0603. Please refer to the document for exact specifications by model.

ZV130K1812 Product details

Description

The ZV Series of low voltage varistors is designed to protect sensitive electronics devices against high voltage surges in the low voltage region.

Features

Nickel barrier terminations.
AC operating voltage (Vrms) from 11V to 130V.
DC operating voltage (Vdc) from 14V to 170V.
No plastic coating guarantees better flammability rating.
Bi-directional, low clamping voltages.
Broad range of current and energy handling capabilities.
+125ºC continuous operating temperature, +150ºC for ZVY.
Dimensional and weight savings on PC board.
AgPd end terminations also available.
