HMC1206, HMC0402 High Value Thick Film Chip Resistor

HMC1206 Description

HMC Series High Value Thick Film Chip Resistor Stackpole Electronics, Inc.Resistive Product Solutions .

HMC1206 Features

* R Value extension of RMCF product
* Highly stable performance over time
* Power derating from 100% at 70ºC to zero at 125ºC
* E12 and E24 values
* Nickel barrier terminations
* RoHS compliant and halogen free Type / Code Power Rating (Watts) @ 70

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HMC1206, HMC0402. Please refer to the document for exact specifications by model.

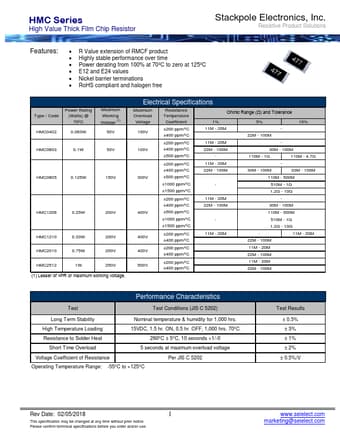

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HMC1206, HMC0402
Manufacturer
Stackpole
File Size
120.39 KB
Datasheet
HMC0402-Stackpole.pdf
Description
High Value Thick Film Chip Resistor
Note
This datasheet PDF includes multiple part numbers: HMC1206, HMC0402.
Please refer to the document for exact specifications by model.
