PV130K4032 - Low & Medium Voltage Plastic Encapsulated SMD Varistor

Download the PV130K4032 datasheet PDF (PV11K3225 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for low & medium voltage plastic encapsulated smd varistor.

Description

Stackpole Electronics, Inc.

The PV Series is a line of surface mount plastic-encapsulated varistors designed to protect electronic equipment against high voltage surges in the low and medium voltage region.

Features

AC operating voltage (Vrms) from 11V to 300V DC operating voltage (Vdc) from 14V to 385V Insensitive to water cleaning procedures and to humidity according to the climate category 55/125/56 +85ºC continuous operating temperature Non-flammable thermoplastic encapsulation case according to standard UL94V-0 2 model sizes available: 3225 and 4032 Dimensional and weight savings on board Easily solderable tinn.

Datasheet Details

Part number	PV130K4032
Manufacturer	Stackpole Electronics
File Size	83.57 KB
Description	Low & Medium Voltage Plastic Encapsulated SMD Varistor
Datasheet	PV130K4032 Datasheet

📁 Similar Datasheet

PV10 - Single-Phase Full Wave Bridge (Electronic Devices)

PV100 - Single-Phase Full Wave Bridge (Electronic Devices)

PV1000 - PCI/ISA Processor Module (Motorola)

PV1005UDF16B - TVS Diode (KEC semiconductor)

PV1005UDF8B - TVS Diode (KEC semiconductor)

PV1010UDF12B - TVS Diode (KEC semiconductor)

PV1010UDF16B - ESD/EMI Filter (KEC)

PV1010UDF8B - ESD/EMI Filter (KEC)

PV1015UDF12B - ESD/EMI Filter (KEC)

PV1015UDF16B - ESD/EMI Filter (KEC)

Full PDF Text Transcription

Click to expand full text

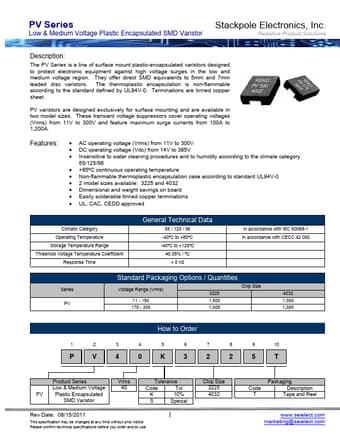

PV Series Low & Medium Voltage Plastic Encapsulated SMD Varistor Description: Stackpole Electronics, Inc. Resistive Product Solutions The PV Series is a line of surface mount plastic-encapsulated varistors designed to protect electronic equipment against high voltage surges in the low and medium voltage region. They offer direct SMD equivalents to 5mm and 7mm leaded disc varistors. The thermoplastic encapsulation is non-flammable according to the standard defined by UL94V-0. Terminations are tinned copper sheet. PV varistors are designed exclusively for surface mounting and are available in two model sizes. These transient voltage suppressors cover operating voltages (Vrms) from 11V to 300V and feature maximum surge currents from 100A to 1,200A.
