SAA128M4T27B 512M DDR SDRAM

SAA128M4T27B Description

512Mb: x4, x8, x16 DDR SDRAM DOUBLE DATA RATE (DDR) SDRAM .
The 512Mb DDR SDRAM is a high-speed CMOS, dynamic random-access memory containing 536,870,912 bits.

SAA128M4T27B Features

* PC2100, PC2700 and PC3200 compatible
* VDD = +2.5V ±0.2V, VDDQ = +2.5V ±0.2V (For
* 6A & 75A)
* VDD = +2.6V ±0.1V, VDDQ = +2.6V ±0.1V (For -5B)
* Bi-directional data strobe (DQS) transmitted/ received with data, i. e. source-synchronous data capture (x16 has t

SAA128M4T27B Applications

* Package Types: 66-pin Plastic TSOP, OCPL (400 mil width, 0.65mm pin pitch) 60-ball (10mm x 12.5mm) FBGA Timing
* Cycle Time: 5ns @ CL=3 (PC3200 or DDR400B) 6ns @ CL = 2.5 (PC2700 or DDR333) 7.5ns @ CL = 2.5 (PC2100 or DDR266) Part number example: (For part numbers prior to December 2004, ref

📥 Download Datasheet

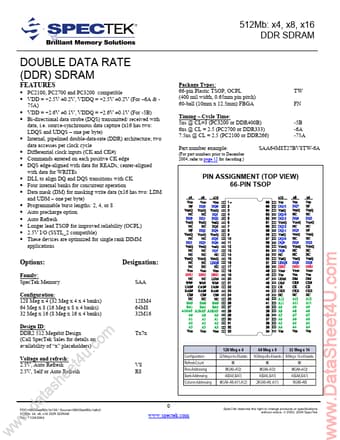

Preview of SAA128M4T27B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SAA128M4T27B
Manufacturer
SpecTek
File Size
627.31 KB
Datasheet
SAA128M4T27B_SpecTek.pdf
Description
512M DDR SDRAM
