FSP460-701UH - Switching Power Supply

Features

  • Complied with ATX12V standard.
  • Active Power Factor Correction (PFC) meet EN61000-3-2.
  • High efficiency and reliability.
  • Compatible with European Union Directive 2002/95/EC (Restriction on Hazardous Substances).
  • Remote ON/OFF function.
  • Internal 12V DC fan included.
  • Low noise and ripple.
  • Output over voltage, short circuit, and over current protection.
  • 100% Hi-pot, ATE, and burn-in tested.
  • Re-settable power shut down.
  • Complies with FCC part 15.

📥 Download Datasheet

Datasheet Details

Part number FSP460-701UH
Manufacturer Sparkle Power
File Size 84.73 KB
Description Switching Power Supply
Datasheet download datasheet FSP460-701UH Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FSP460-70PFL switching power supply FSP
FSP460-60HCN ATX / PS2 power supply unit FSP
FSP460-60PFN PC POWER SUPPLY FSP
FSP400-60GLN Switching Power Supply FSP
FSP400-60GN PC POWER SUPPLY FSP

Other Datasheets by Sparkle Power

Part Number Description
FSP460-60GHC Switching Power Supply
FSP460-621U Switching Power Supply
FSP400-601UC PC POWER SUPPLY
FSP400-60EGA PC POWER SUPPLY
FSP400-60ETN PC POWER SUPPLY

Full PDF Text Transcription

Click to expand full text

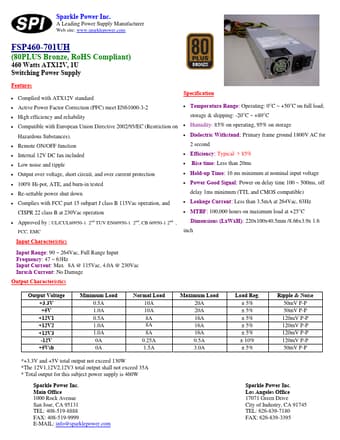

Sparkle Power Inc. A Leading Power Supply Manufacturer Web site: www.sparklepower.com FSP460-701UH (80PLUS Bronze, RoHS Compliant) 460 Watts ATX12V, 1U Switching Power Supply Features  Complied with ATX12V standard  Active Power Factor Correction (PFC) meet EN61000-3-2  High efficiency and reliability  Compatible with European Union Directive 2002/95/EC (Restriction on Hazardous Substances).
