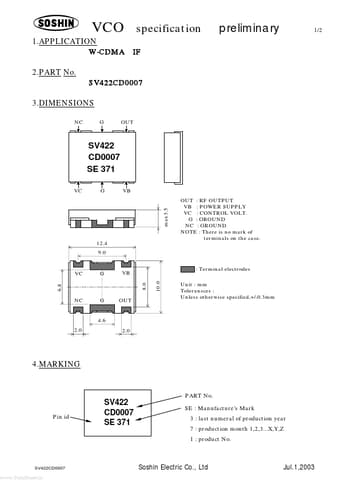

VCO 1.APPLICATION W-CDMA 2.PART No. specification IF preliminary 1/2 SV422CD0007 3.DIMENSIONS NC G OUT SV422 CD0007 œ VC SE 371 G VB SIDE VIEW 12.4 9.0 OUT : RF OUTPUT VB : POWER SUPPLY VC : CONTROL VOLT. G : GROUND NC : GROUND NOTE : There is no mark of terminals on the case. max3.5 VC 6.8 G VB 10.0 8.0 : Terminal electrodes Unit : mm Toleransces : Unless otherwise specified,+/-0.3mm BOTTOM VIEW NC G OUT 4.6 2.0 2.0 4.MARKING PART No. Pin id œ SV422 CD0007 .
