SV259PH0010 Datasheet - Soshin

SV259PH0010 VOC

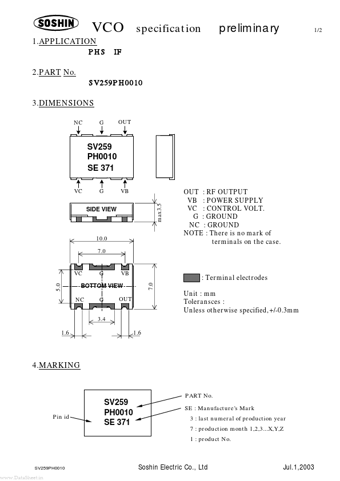

VCO 1.APPLICATION PHS 2.PART No. IF specification preliminary 1/2 SV259PH0010 3.DIMENSIONS NC G OUT œ VC SV259 PH0010 SE 371 G SIDE VIEW VB max3.5 10.0 7.0 OUT : RF OUTPUT VB : POWER SUPPLY VC : CONTROL VOLT. G : GROUND NC : GROUND NOTE : There is no mark of terminals on the case. VC 5.0 G VB 7.0 : Terminal electrodes Unit : mm Toleransces : Unless otherwise specified, +/-0.3mm BOTTOM VIEW NC G 3.4 1.6 1.6 OUT 4.MARKING PART No. Pin id œ SV259 PH0010 SE 371 SE.
