SF2030A-AS - Common mode:Wide band/High attenuation Dood

Download the SF2030A-AS datasheet PDF. This datasheet also covers the SF2000A-AS variant, as both devices belong to the same common mode:wide band/high attenuation dood family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SF2000A-AS_Soshin.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SF2030A-AS
Manufacturer Soshin
File Size 84.65 KB
Description Common mode:Wide band/High attenuation Dood
Datasheet download datasheet SF2030A-AS Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SF2030A 243.95 MHz SAW Filter RFM
SF2030BC Super Fast Rectifier GME
SF2030C (SF2010C - SF2060C) Super Fast Rectifiers Luguang Electronic Technology
SF2030FC (SF2010FC - SF2060FC) Super Fast Rectifiers Luguang Electronic Technology
SF203 2.0A SOFT FAST RECOVERY RECTIFIER Won-Top Electronics

Other Datasheets by Soshin

Part Number Description
SF2030A-AQ Common mode:Wide band/High attenuation Dood
SF2000A-AQ Common mode:Wide band/High attenuation Dood
SF2000A-AS Common mode:Wide band/High attenuation Dood
SF2010A-AQ Common mode:Wide band/High attenuation Dood
SF2010A-AS Common mode:Wide band/High attenuation Dood

Full PDF Text Transcription

Click to expand full text

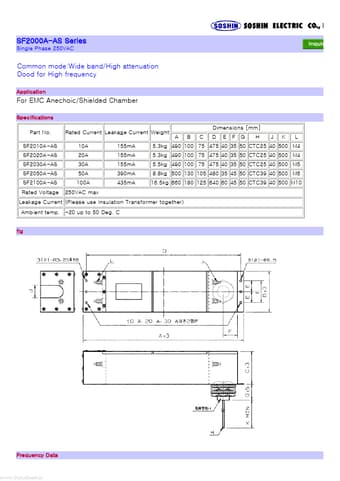

SF2000A-AS Series Single Phase 250VAC Common mode:Wide band/High attenuation Dood for High frequency Application For EMC Anechoic/Shielded Chamber Specifications Part No. SF2010A-AS SF2020A-AS SF2030A-AS SF2050A-AS SF2100A-AS Rated Voltage Rated Current Leakage Current Weight 10A 20A 30A 50A 100A 250VAC max 155mA 155mA 155mA 390mA 435mA Dimensions [mm] A B C D E F G H J K L 5.3kg 490 100 75 475 40 35 50 CTC25 40 500 M4 5.3kg 490 100 75 475 40 35 50 CTC25 40 500 M4 5.5kg 490 100 75 475 40 35 50 CTC25 40 500 M5 8.8kg 500 130 105 480 35 45 50 CTC39 40 500 M6 16.5kg 660 180 125 640 60 45 50 CTC39 40 500 M10 Leakage Current (Please use Insulation Transformer together) Ambient temp. -20 up to 50 Deg. C fig Frequency Data www.DataSheet.in www.DataSheet.
