MBRB10150CT, MBRB10100CT - High Power Schottky Barrier Rectifier

The MBRB10150CT by Sooner is a High Power Schottky Barrier Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	MBRB10150CT, MBRB10100CT
Manufacturer	Sooner
File Size	674.59 KB
Description	High Power Schottky Barrier Rectifier
Datasheet	MBRB10100CT-Sooner.pdf
Note	This datasheet PDF includes multiple part numbers: MBRB10150CT, MBRB10100CT. Please refer to the document for exact specifications by model.

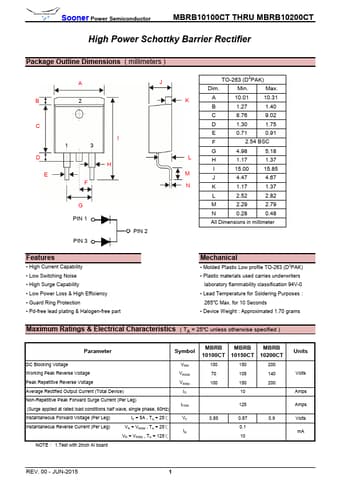

Additional preview pages of the MBRB10150CT datasheet.

High Current Capability.
Low Switching Noise.
High Surge Capability.
Low Power Loss & High Efficiency.
Guard Ring Protection.
Pd-free lead plating & Halogen-free part TO-263 (D2PAK) Dim. Min. Max. K A 10.01 10.31 B 1.27 1.40 C 8.76 9.02 D 1.30 1.75 E 0.71 0.91 F 2.54 BSC G 4.98 5.18 L H 1.17 1.37 I 15.00 15.85 M J 4.47 4.67 N K 1.17 1.37 L 2.52 2.82 M 2.29 2.79 N 0.28 0.48 All Dimensions in millimeter Mechanical.
Molded Plastic Low.
