IMX214-0AQH5-C - 13Mega-Pixel CMOS Image Sensor

Description

IMX214 is a diagonal 5.867mm (Type 1/3.06) 13 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array.

Features

  • IA.
  • Back-illuminated and stacked CMOS image sensor “Exmor-RSTM” T.
  • Single Frame High Dynamic Range (HDR) with equivalent full pixels.
  • High signal to noise ratio (SNR). N.
  • Full resolution @30fps (Nornmal / HDR). 4K2K @30fps (Normal / HDR) 1080p @60fps (Normal / HDR) E.
  • Output video format of RAW10/8, COMP8/6.
  • Pixel binning readout and H/V sub-sampling function. ID.
  • Advanced Noise Reduction (Chroma noise reduction and luminance noise reduction).
  • Independent.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IMX2 Transistor Rohm
IMX2 GENERAL PURPOSE DUAL TRANSISTOR UTC
IMX23RM Applications Processor Freescale Semiconductor
IMX29F002 2M-BIT [256K x 8] CMOS FLASH MEMORY Macronix International
IMX1 Dual Transistor Rohm

Other Datasheets by Sony Semiconductor Solutions

Part Number Description
IMX219PQH5-C CMOS Image Sensor
IMX225LQR CMOS Solid-state Image Sensor
IMX238LQJ-C Diagonal 6.28 mm (Type 1/3) CMOS Solid-state Image Sensor
IMX290LQR-C CMOS Solid-state Image Sensor
IMX291LQR-C CMOS Solid-state Image Sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

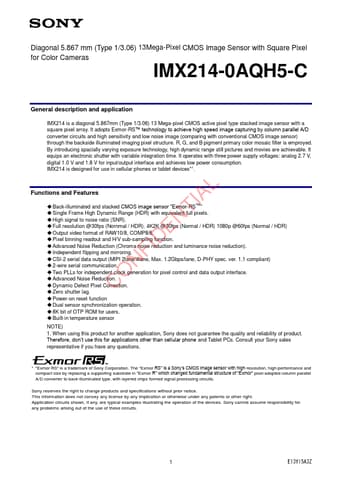

Diagonal 5.867 mm (Type 1/3.06) 13Mega-Pixel CMOS Image Sensor with Square Pixel for Color Cameras IMX214-0AQH5-C General description and application IMX214 is a diagonal 5.867mm (Type 1/3.06) 13 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. It adopts Exmor-RS™ technology to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is emproyed. By introducing spacially varying exposure technology, high dynamic range still pictures and movies are achievable. It equips an electronic shutter with variable integration time.
