ICX428AKL Diagonal 8mm (Type 1/2) CCD Image Sensor

ICX428AKL Description

ICX428AKL Diagonal 8mm (Type 1/2) CCD Image Sensor for NTSC Color Video Cameras .
The ICX428AKL is an interline CCD solid-state image sensor suitable for NTSC color video cameras with a diagonal 8mm (Type 1/2) system.

ICX428AKL Features

* a field period readout system and an electronic shutter with variable charge-storage time. This chip is compatible with the pins of the ICX248AK and has the same drive conditions. EXview HAD CCD TM has different spectral characteristics from the current CCD. 20 pin DIP (Cer-DIP) www. DataSheet4U. com

📥 Download Datasheet

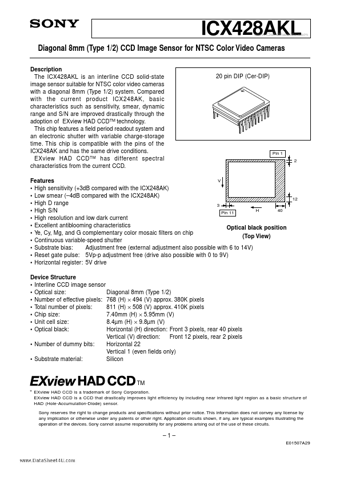

Preview of ICX428AKL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICX428AKL
Manufacturer
Sony Corporation
File Size
223.77 KB
Datasheet
ICX428AKL_SonyCorporation.pdf
Description
Diagonal 8mm (Type 1/2) CCD Image Sensor
