Datasheet Details
| Part number | ICX055AL |
|---|---|
| Manufacturer | Sony Semiconductor Solutions |
| File Size | 281.81 KB |
| Description | 1/3-inch CCD Image Sensor |
| Datasheet |

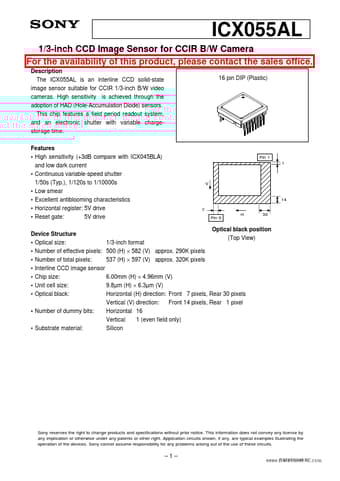

 ICX055AL Datasheet
|
|
|
Description
The ICX055AL is an interline CCD solid-state image sensor suitable for CCIR 1/3-inch B/W video cameras.
High sensitivity is achieved through the adoption of HAD (Hole-Accumulation Diode) sensors.
Features
- a field period readout system, and an electronic shutter with variable chargestorage time. Features.
- High sensitivity (+3dB compare with ICX045BLA) and low dark current.
- Continuous variable-speed shutter 1/50s (Typ. ), 1/120s to 1/10000s.
- Low smear.
- Excellent antiblooming characteristics.
- Horizontal register: 5V drive.
- Reset gate: 5V drive 16 pin DIP (Plastic) Pin 1 1 V 14 7 Pin 9 H 30 Optical black position Device Structure (Top View).
