CXD2053AM - Auto Wide/ EDTV-II ID Detection/ ID-1 Detection

Description

The CXD2053AM/AS is an IC which has the three functions of identifying the wide video (auto wide), detecting the EDTV-II ID, and detecting ID-1 (EIAJ, CPX1024) from the video signal.

Features

  • Video aspect ratio identification used with wide TVs is realized with a single chip.
  • I2C bus interface. This IC can also be used without the bus.
  • For auto wide function, 525/60 (NTSC) and 625/50 (PAL, SECAM) can be Supported.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CXD2011Q Digital Comb Filter Sony
CXD2018AQ Vertical Deflection Processing Sony
CXD2024AQ C-MOS DIGITAL COMB FILTER ETC
CXD2202Q SERVO IC ETC
CXD2408AR Timing Generator for Progressive Scan CCD Image Sensor Sony

Other Datasheets by Sony Semiconductor Solutions

Part Number Description
CXD2053AS Auto Wide/ EDTV-II ID Detection/ ID-1 Detection
CXD2027Q DBS Audio Signal Processor
CXD2027R DBS Audio Signal Processor
CXD2043Q Digital Comb Filter (NTSC)
CXD2044Q Digital Comb Filter (NTSC/PAL/PAL-M/PAL-N)

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

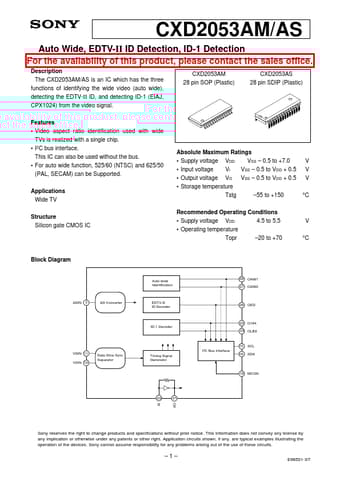

CXD2053AM/AS Auto Wide, EDTV-II ID Detection, ID-1 Detection For the availability of this product, please contact the sales office. Description The CXD2053AM/AS is an IC which has the three functions of identifying the wide video (auto wide), detecting the EDTV-II ID, and detecting ID-1 (EIAJ, CPX1024) from the video signal. Features • Video aspect ratio identification used with wide TVs is realized with a single chip. • I2C bus interface. This IC can also be used without the bus. • For auto wide function, 525/60 (NTSC) and 625/50 (PAL, SECAM) can be Supported. Applications Wide TV Structure Silicon gate CMOS IC CXD2053AM 28 pin SOP (Plastic) CXD2053AS 28 pin SDIP (Plastic) Absolute Maximum Ratings VSS – 0.5 to +7.0 • Supply voltage VDD • Input voltage VI VSS – 0.5 to VDD + 0.
