CXD1947Q - IEEE1394 LINK Layer / PCI Bridge LSI

Name: CXD1947Q
SKU: CXD1947Q-544566

Sony Corporation

📥 Download Datasheet

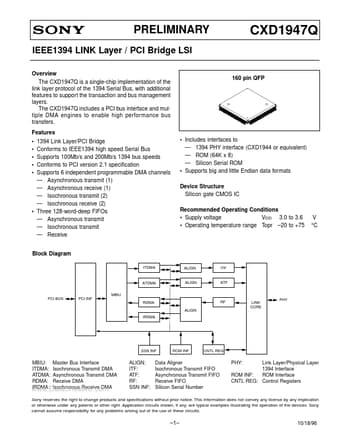

CXD1947Q Datasheet Preview — Preview of CXD1947Q PDF

Datasheet Details

Part number	CXD1947Q
Manufacturer	Sony Corporation
File Size	82.58 KB
Description	IEEE1394 LINK Layer / PCI Bridge LSI
Datasheet	CXD1947Q_SonyCorporation.pdf

CXD1947Q Product details

Description

The block diagram shows the CXD1947Q and its connections in a host system. 3 www.DataSheet4U.com Preliminary CXD1947Q Package Outline Unit: mm 160 pin QFP (Plastic) 31.2 ±0.2 28.0 ±0.2 120 81 80 0.15 +0.1 0.05 0.1

Features

to support the transaction and bus management layers. The CXD1947Q includes a PCI bus interface and multiple DMA engines to enable high performance bus transfers. Features.
1394 Link Layer/PCI Bridge Conforms to IEEE1394 high speed Serial Bus Supports 100Mb/s and 200Mb/s 1394 bus speeds Conforms to PCI version 2.1 specification Supports 6 independent programmable DMA channels.
Asynchronous transmit (1).
Asynchronous receive (1).
