CXD1250M - Vertical Clock Driver for CCD Image sensor

Description

CXD1250M/N is a clock driver developed for the vertical register drive of CCD Image sensor.

Features

  • 4-channel vertical clock driver and 1 channel substrate driver are built-in.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CXD1256R CCD Camera Timing Generator Sony
CXD101-106Q CMOS Digital Delay Line ETC
CXD104-114Q C-MOS MEMORY SEQUENCER ETC
CXD1088AQ Over Sampling Digital Filter Sony
CXD1095AR CMOS I/O Expander ETC

Other Datasheets by Sony Semiconductor Solutions

Part Number Description
CXD1250N Vertical Clock Driver for CCD Image sensor
CXD1254AQ CCD Camera Synchronization and Timing Signal Generator
CXD1254AR CCD Camera Synchronization and Timing Signal Generator
CXD1257AR CCD Camera Timing Generator
CXD1217M Synchronizing Signal Generator for Video Camera

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

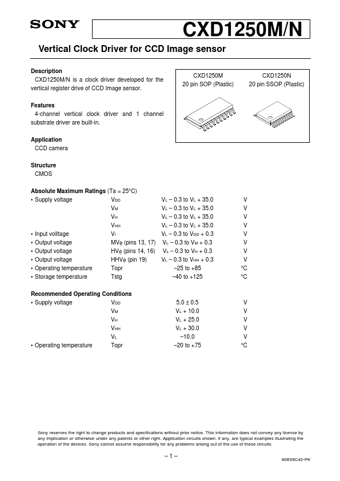

CXD1250M/N Vertical Clock Driver for CCD Image sensor Description CXD1250M/N is a clock driver developed for the vertical register drive of CCD Image sensor. Features 4-channel vertical clock driver and 1 channel substrate driver are built-in. Application CCD camera Structure CMOS Absolute Maximum Ratings (Ta = 25°C) • Supply voltage VDD VM VH VHH • Input volltage VI • Output voltage MVφ (pins 13, 17) • Output voltage HVφ (pins 14, 16) • Output voltage HHVφ (pin 19) • Operating temperature Topr • Storage temperature Tstg Recommended Operating Conditions • Supply voltage VDD VM VH VHH VL • Operating temperature Topr CXD1250M 20 pin SOP (Plastic) CXD1250N 20 pin SSOP (Plastic) VL – 0.3 to VL + 35.0 VL – 0.3 to VL + 35.0 VL – 0.3 to VL + 35.0 VL – 0.3 to VL + 35.0 VL – 0.3 to VDD + 0.
