CXD1175AP - 8-bit 20MSPS Video A/D Converter (CMOS)

Sony Corporation

📥 Download Datasheet

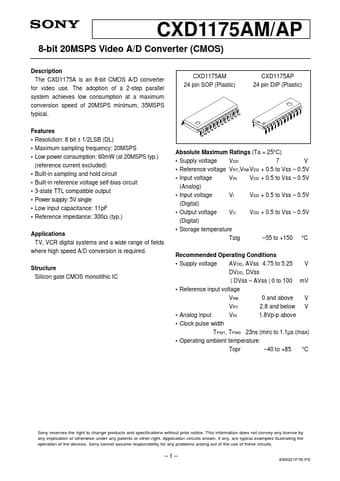

CXD1175AP Datasheet Preview — Preview of CXD1175AP PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CXD1175AP
Manufacturer	Sony Corporation
File Size	302.35 KB
Description	8-bit 20MSPS Video A/D Converter (CMOS)
Datasheet	CXD1175AP_SonyCorporation.pdf

CXD1175AP Product details

Description

The CXD1175A is an 8-bit CMOS A/D converter for video use.

Features

Resolution: 8 bit ± 1/2LSB (DL).
Maximum sampling frequency: 20MSPS.
Low power consumption: 60mW (at 20MSPS typ. ) (reference current excluded).
Built-in sampling and hold circuit.
Built-in reference voltage self-bias circuit.
3-state TTL compatible output.
Power supply: 5V single.
Low input capacitance: 11pF.
Reference impedance: 300Ω (typ. ).
