CXA3510N - 4ch. Read/Write Amplifier for Thin Film Head of Hard Disk Drive

General Description

The CXA3510N is a Read/Write Amplifier for the thin film head of hard disk drive and designed to handle up to 4 channel heads.

Key Features

  • Operate on single +5 V power supply.
  • Low power consumption Read : 85 mW Write : 115 mW + IW × 5 Idle : 8 mW.
  • Designed for two terminal thin-film or MIG heads.
  • Read amplifier emitter follower output featuring 360 times gain (typ).
  • Differential input capacitance for Read : 6pF (typ).
  • Input noise : 0.47 nV / √ Hz (typ).
  • Write current range : 5 to 15 mA.
  • Differential Head voltage swing : 9 Vp-p (typ).
  • IW Rise / Fall t.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CXA3590 LED CREE
CXA3070 LED CREE
CXA3314ER 6GHz PLL Sony
CXA3355AER GPS Down Converter IC Sony
CXA3355ER GPS Down Converter IC Sony

Other Datasheets by Sony Semiconductor Solutions

Part Number Description
CXA3512R LCD Driver
CXA3516R 3-channel 8-bit 165MSPS A/D Converter Amplifier PLL
CXA3503R Driver/Timing Generator for Color LCD Panels
CXA3506R 3-channel 8-bit 120MSPS A/D Converter Amplifier PLL
CXA3522R Driver/Timing Generator for Color LCD Panels

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

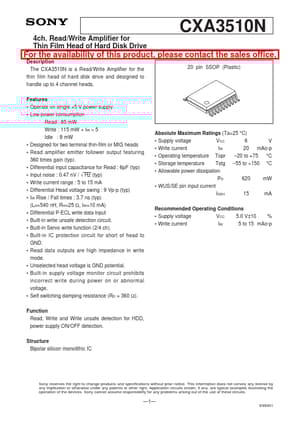

CXA3510N 4ch. Read/Write Amplifier for Thin Film Head of Hard Disk Drive For the availability of this product, please contact the sales office. Description The CXA3510N is a Read/Write Amplifier for the thin film head of hard disk drive and designed to handle up to 4 channel heads. Features • Operate on single +5 V power supply • Low power consumption Read : 85 mW Write : 115 mW + IW × 5 Idle : 8 mW • Designed for two terminal thin-film or MIG heads • Read amplifier emitter follower output featuring 360 times gain (typ). • Differential input capacitance for Read : 6pF (typ) • Input noise : 0.47 nV / √ Hz (typ) • Write current range : 5 to 15 mA • Differential Head voltage swing : 9 Vp-p (typ) • IW Rise / Fall times : 3.
