CXA3106Q - PLL IC for LCD Monitor/Projector

Sony Corporation

The CXA3106Q by Sony Corporation is a PLL IC for LCD Monitor/Projector. Below is the official datasheet preview.

📥 Download Datasheet

CXA3106Q PLL IC for LCD Monitor/Projector by Sony Corporation - Datasheet Preview — Official preview page of the CXA3106Q PLL IC for LCD Monitor/Projector datasheet (Sony Corporation).

Datasheet Details

Part number	CXA3106Q
Manufacturer	Sony Corporation
File Size	962.69 KB
Description	PLL IC for LCD Monitor/Projector
Datasheet	CXA3106Q_SonyCorporation.pdf

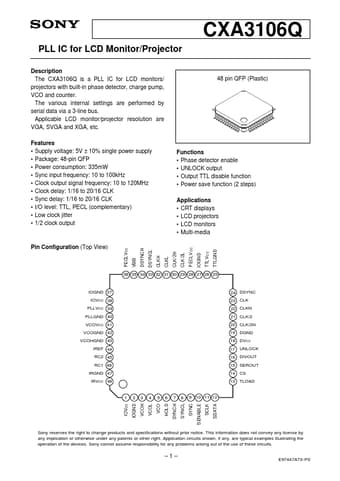

Additional preview pages of the CXA3106Q datasheet.

CXA3106Q Product details

Description

The CXA3106Q is a PLL IC for LCD monitors/ projectors with built-in phase detector, charge pump, VCO and counter.

Features

Supply voltage: 5V ± 10% single power supply.
Package: 48-pin QFP.
Power consumption: 335mW.
Sync input frequency: 10 to 100kHz.
Clock output signal frequency: 10 to 120MHz.
Clock delay: 1/16 to 20/16 CLK.
Sync delay: 1/16 to 20/16 CLK.
I/O level: TTL, PECL (complementary).
Low clock jitter.
1/2 clock output 48 pin QFP (Plastic) Functions.
Phase detector enable.
UNLOCK output.
O.
